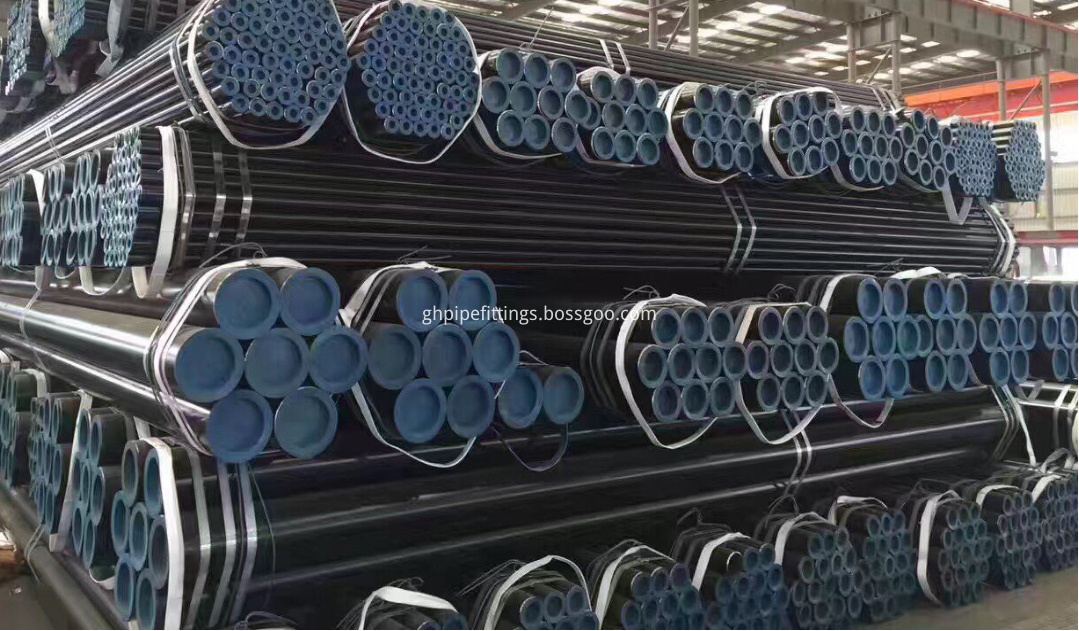

ASTM A333GR3 Seamless Steel Pipe

Basic Info

Model No.: 1/2-124" SEAMLESS

Certification: CSA, pcoc, Reach, IECEE, scoc, UL, EPA, GS

Support customization: OEM

place of origin: China

Craft: Forged

Connection method: Welding

shape: Equal

Additional Info

Packaging: Wooden cases .wooden pallet,or as for customers' requirements

Productivity: 50000 Tons

Brand: GH

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 50000 Tons

Certificate: IS0/API/PED/QTY/CE

HS Code: 7304319000

Port: Tianjin,Qingdao,Shanghai

Product Description

He Bei GuangHao Pipe Fittings Co .,LTD Specializing in the production of steel pipe and pipe fittings
Main production:Heat Preservation Anticorrosive Pipe，Seamless Pipe，ERW/HFW Steel Pipe，LSAW STEEL PIPE，Spiral Tube，Buttweld Steel Pipe Fittings,Industrial Flanges,Steel Pipes,Buttweld  Elbows,Buttwel Tees,Forged fittings,etc.
Welcome to discuss

 Forged Fittings/Buttweld Steel Pipe Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc.

ASTM A333 GRADE 3 SEAMLESS PIPES FOR LOW TEMPERATURE SERVICE

ASTM A333 (ASME S/A-333) Pipe grades permit low temperature service. This specification covers nominal (average) walled pipe almost exclusively in seamless.  Several grades of ferritic steel are included. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse effect on low-temperature impact properties. A333 pipe is furnished to nine different grades designated by numbers 1, 3, 4, 6, 7, 8, 9, 10, & 11.

A333 SPECIFICATION

Stockist, Suppliers and Exporter of ASTM A333 Gr 3, Low Temperature,

• Steel Grade : ASTM A333 Grade 3
• Length : 5000 mm - 7000 mm, 10000 mm - 12000 mm or as per Client Requirement.
• Outside Diameter : 1/2" to 42" - Seamless
• Outside Diameter : 14" to 100" - Welded
• Wall Thickness : 2.00 mm to 100.00 mm
• Delivery Terms : Max 1 week (All From Stock)

SCOPE

This specification covers nominal (average) wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures and in other applications requiring notch toughness. Several grades of ferritic steel are included as listed. Some product sizes may not be available under this specification because heavier wall thickness have an adverse effect on impact properties.

The values stated in either SI units or inch-pound units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system may not be excat equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.

HEAT TREATMENT

All seamless and welded pipe shall be treated to control their microstructure by the following methods: Normalizing per A 333/A 333M-05 section 4.2.1.1; section 4.2.1.2 or section 4.2.1.3 Quenched and Tempered per A 333/A 333M – 05 section 4.2.2.1 Double Normalized and Tempered per A 333/A 333M – 05 section 4.2.2.2

CHEMICAL COMPOSITION

For each reduction of 0.01% carbon below 0.30%, an increase of 0.05% manganese above 1.06% would be permitted to a maximum of 1.35% manganese.

TENSILE REQUIREMENT

 Elongation in 2 in or 50 mm, min, %

 IMPACT REQUIREMENTS

 MECHANICAL TESTING

Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested. For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe. Hydrostatic Test Impact Test One notched bar impact test, consisting of breaking three specimens shall be made from each heat represtented in a heat-treatment load on specimens taken from the finished pipe.

HEAT TREATMENT REQUIREMENTS

All seamless and welded pipe shall be treated to control their microstructure by the following methods: Normalizing per A 333/A 333M-05 section 4.2.1.1; section 4.2.1.2 or section 4.2.1.3 Quenched and Tempered per A 333/A 333M – 05 section 4.2.2.1 Double Normalized and Tempered per A 333/A 333M – 05 section 4.2.2.2

IMPACT TEMPERATURE REDUCTION
